Projects

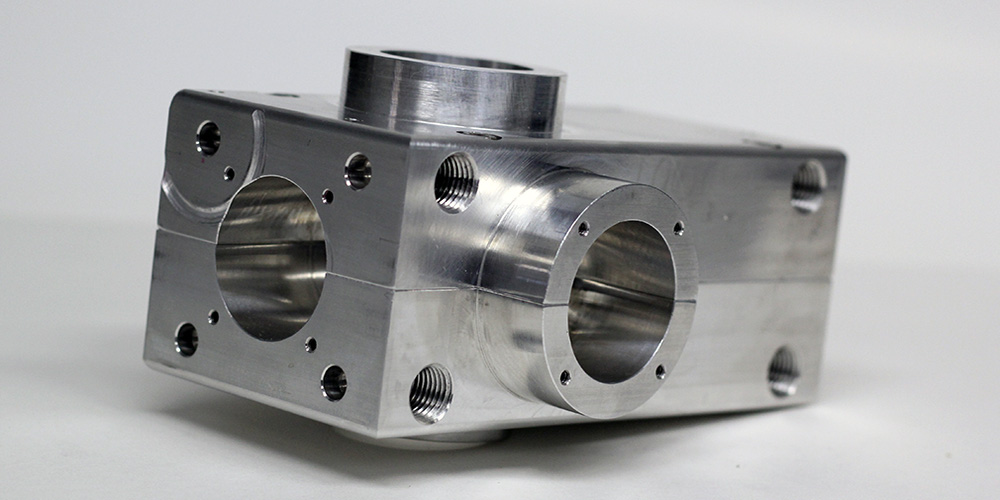

Laser Equipment, Manifold
Material 6061-T651, part size 2.5 X 5.0 X 8.0, +-.002 tolerance.
CNC milled part in a two piece assembly with 3D inner contouring and deep holed drilling.

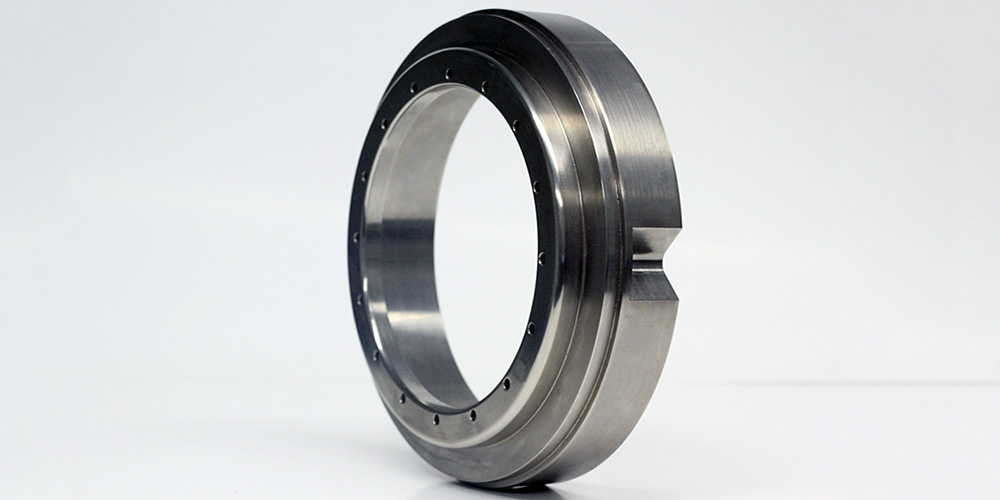

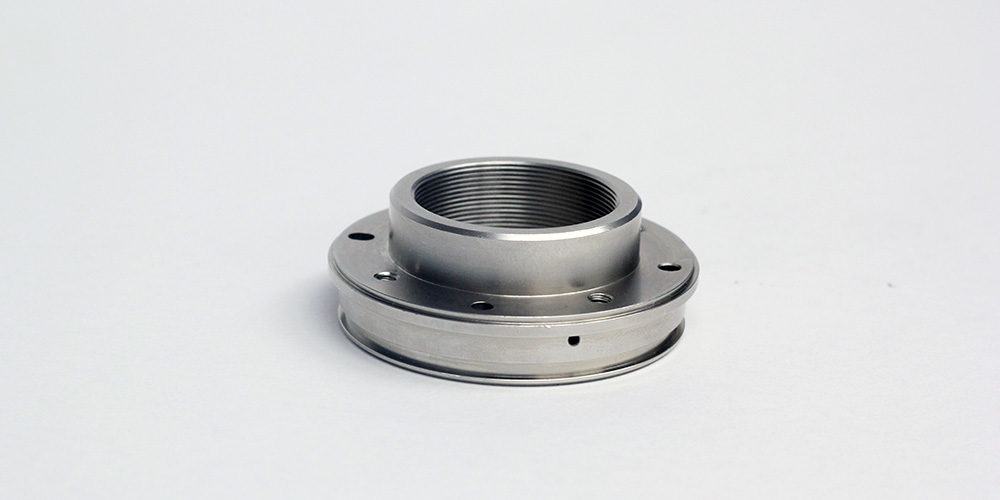

Aerospace, Camera Housing
Material stainless steel 316, part size 2.5 X .625, +-.002 tolerance, some areas +-.001 tolerance.
CNC lathe part, manufactured in two operations. There was two CNC Mill operations to drill, cut slots, and drill side holes.

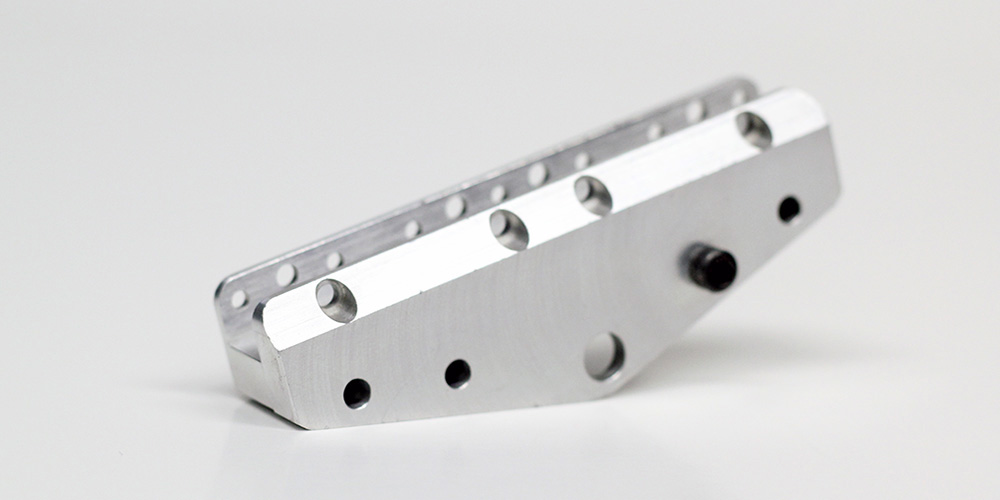

Semiconductor, Wafer Arm Fixture
Material 6061-T6511, part size is .5 X 2.0 X 3.0, +- .002 tolerance.
CNC milled part, manufactured in two operations.

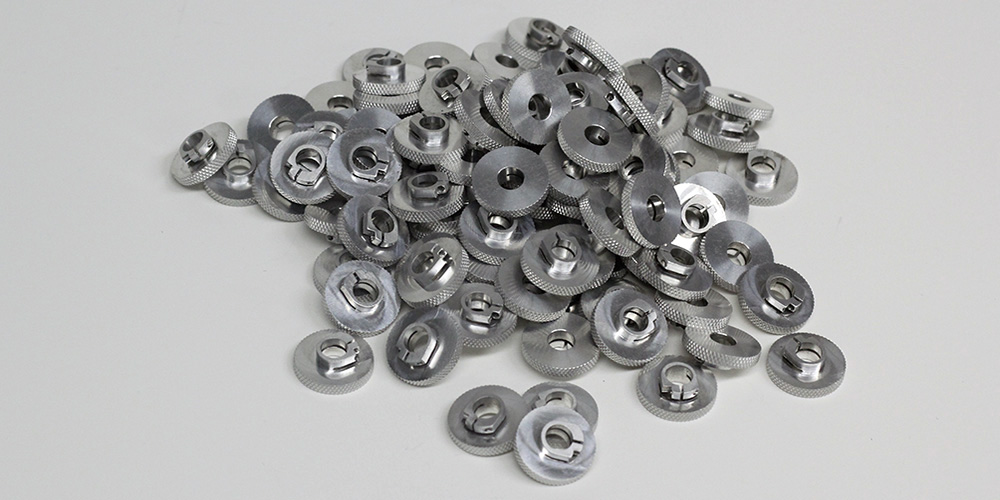

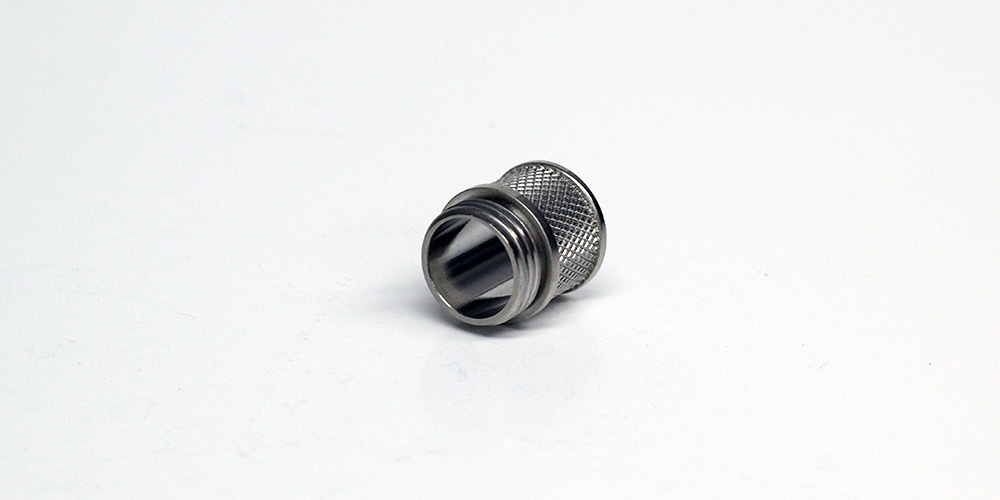

Semiconductor, Custom Knurl Adjuster
Material 6061-T6511 part size .75 x .188, +- .005 tolerance.
A CNC lathe Part, 1st operation on the lathe, it was turned, drilled, reamed, and knurled. Then our CNC mill profiled and slotted it. And finally one conventional mill operation for the final slotting.
Oil & Gas Industry, Pump Fixture Block
Material 6061-T6511, part size 4.0 X 5.0 X 6.0, true position tolerances of +-.002 and some areas +-.0005 tolerance.
Manufactured on our CNC mill on all six sides, then it was black anodized.
Aerospace, Assembly Item Custom Fastener
Material 6061-T6511, part size .75 x .7 long, +-.002 tolerance.
Manufactured on our CNC Lathe in 1 operation, then it recieved electroless nickel plating.
Medical Device Part
Material 6061-T6511, part size .16 X .1 X .25, +-.001 tolerance.
Manufactured on our CNC mill in two operations for full 3d contouring.

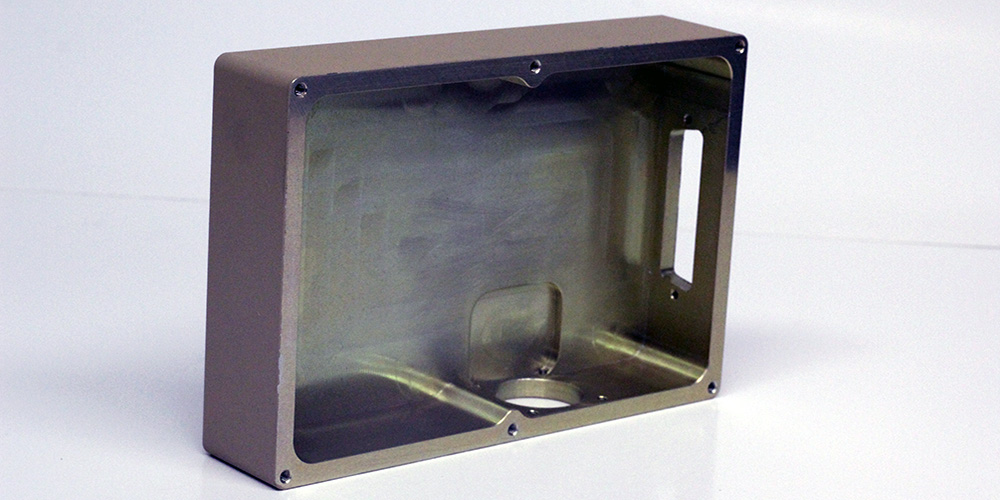

Military, RF Housing
Material aluminum 7075-T7351, part size 2.5 X 4.0 x 7.0, tolerance +-.005.
Manufactured on our CNC Mill, recieved 4 sides of machining, chem film and painting, with helicoil installation.
Aerospace, Camera Housing
Material 12L14, part size 6.5 inches round by 2.5 long, +- .002 tolerance, some areas +-.001 tolerance.
CNC lathe part manufactured in two operations and our CNC mill did the drilling and contouring.

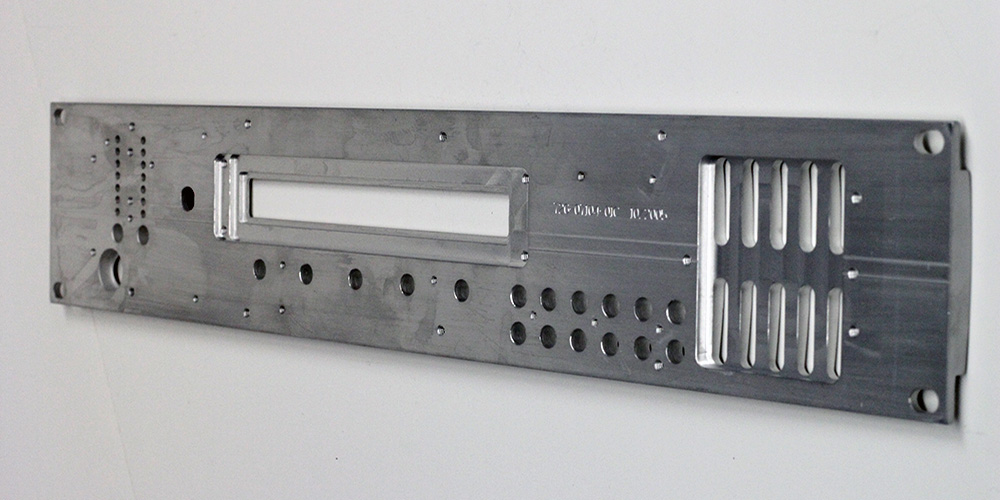

Movies & Music Industry, Server Face Plate
Material aluminum extrusion, part size .5X 4.0 X 20.0, +-.005 tolerance.
Manufactured on on our CNC mill. Custom formed cutters were used on the front side of this cosmetically critical part to give it its shape.

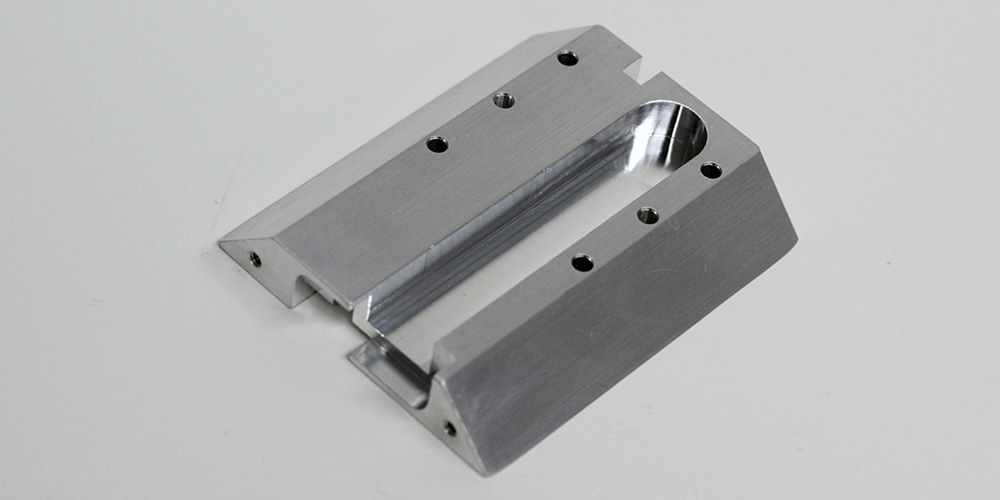

Semiconductor, Fixture Slide
Material 6061-T6511 aluminum, part size .5 X 2.5 X 3.05, +-.002 tolerance.
Manufactured on our CNC Mill with 4 sides of machining, and one conventional mill operation.

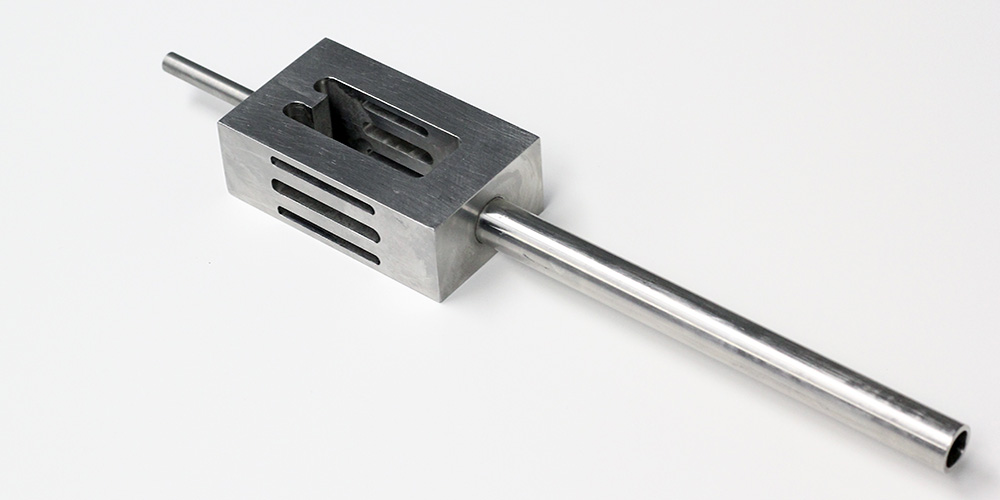

Semiconductor, Tooling Fixture
Material 304 stainless steel, part size 1.0 X 1.75 x 3.95, +-.002 tolerance.
Manufactured on our conventional mill and lathe, there were tight tolerances on shaft and bores for a precise fit.
